HYSUN’s standard container for various purposes is suitable for international container transport.
Product Description
It is of appropriate external dimensions and has connections for lifting and fixing or compounding. The container is designed as a light construction consisting of floor and roof frames and corner profiles.
The construction enables the compounding of individual containers in longitudinal and transverse directions without limits.
![product description](http://www.hysunbuilding.com/wp-content/uploads/2020/06/HY-A-2.jpg)
![HY-A](http://www.hysunbuilding.com/wp-content/uploads/2020/06/HY-A-.jpg)

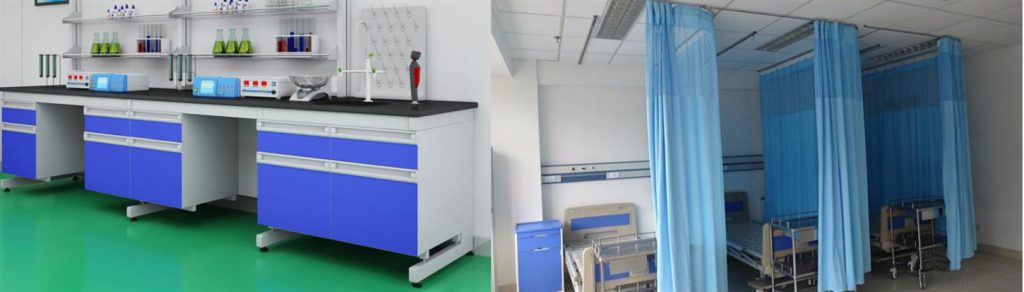

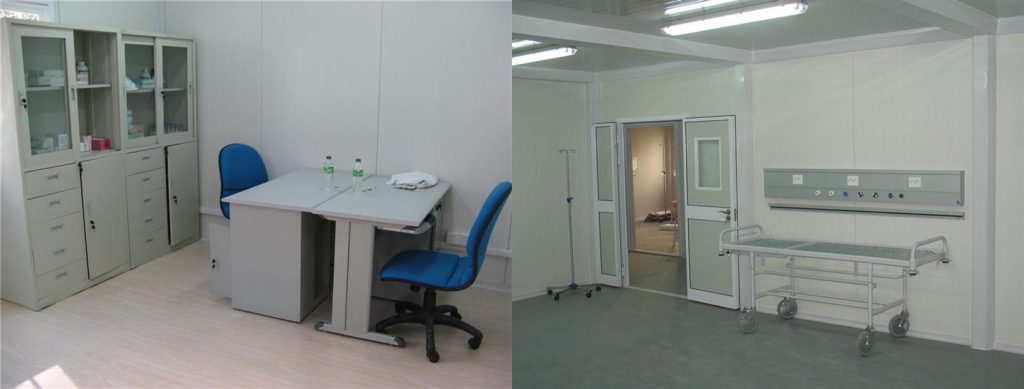

Detailed Images
![inside](http://www.hysunbuilding.com/wp-content/uploads/2020/06/inside-1024x389.jpg)
![item](http://www.hysunbuilding.com/wp-content/uploads/2020/06/item-1-2-1024x292.jpg)
Layout
![HY-A-50-beds](http://www.hysunbuilding.com/wp-content/uploads/2020/06/HY-A-50-bedsjpg-1024x376.jpg)

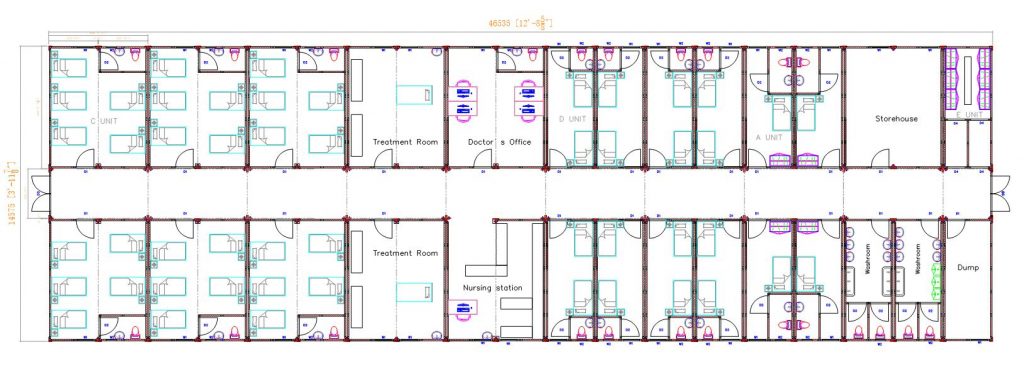

The 50 beds inpatient department Design
Container Unit: 48 units
Included function modular unit:

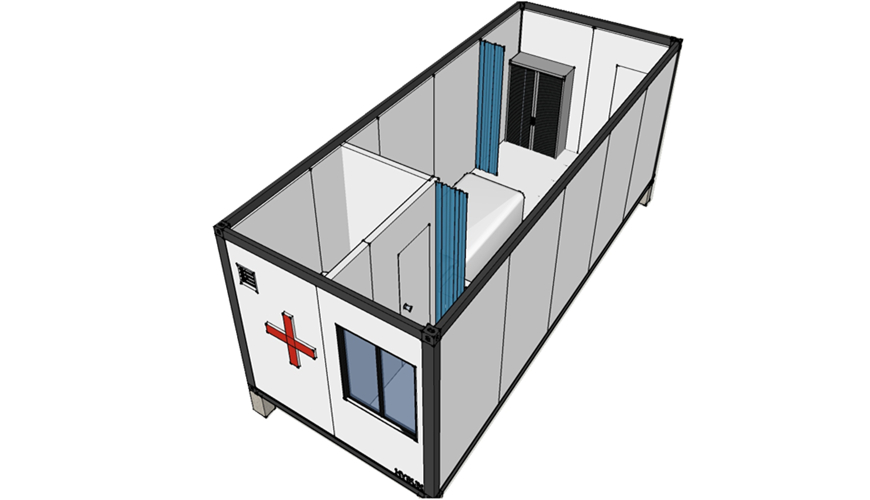

1. Container A -1 bed ward: 4 sets, total 4 unit container
2. Container B -2 beds wards: 8 sets, total 8 unit container

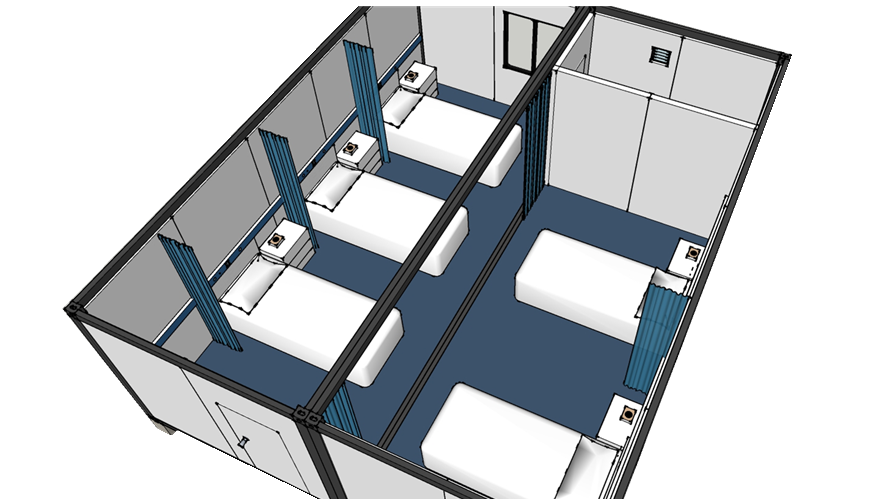

3. Container C -5 beds wards: 6 sets, total 12 unit container

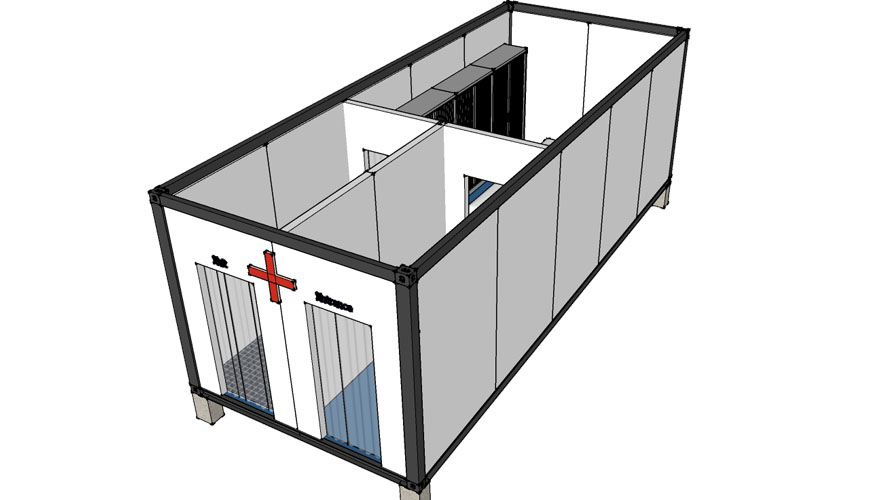

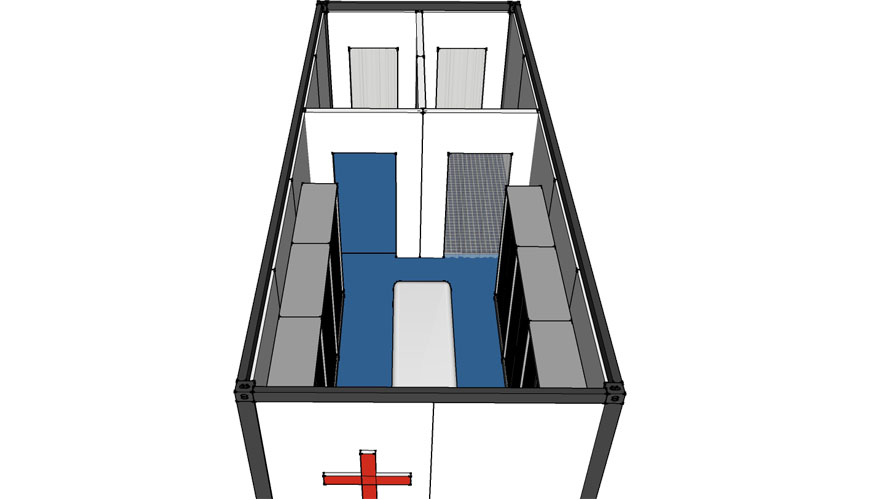

4. Container E -disinfectant channel and changing room: 1 set, total 1 unit container
5. treatment room: 2 sets, total 4 unit container
6. Doctor office: 1 set, total 2 unit container
7. Nurses station: 1 set, total 2 unit container
8. Toilet room: 2 sets, total 2 unit container
9. Storage room: 1 set, total 2 unit container
10. Dump: 1 set, total 1 unit container
11. Hallway container: 10 set
![HY-A-60-beds](http://www.hysunbuilding.com/wp-content/uploads/2020/06/HY-A-60-beds-1024x363.jpg)

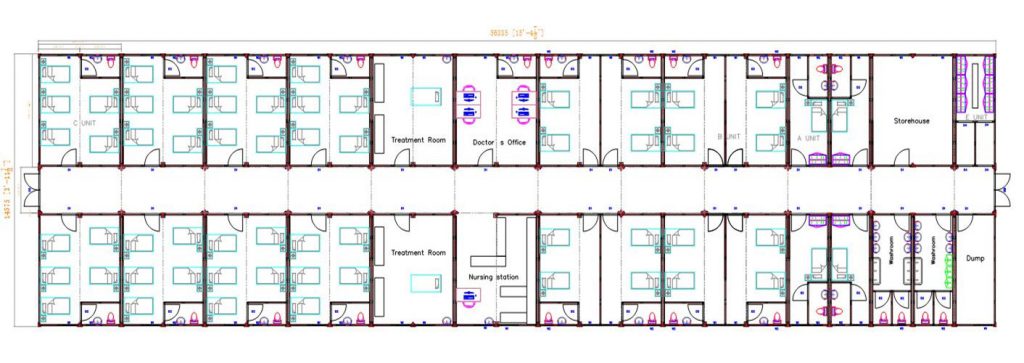

The 60 beds inpatient department Design
Container Unit: 58 units
Included function modular unit:
1. Container A -1 bed ward: 4 sets, total 4 unit container
2. Container C-5 beds wards: 8 sets, total 16 unit container
3. Container D -2 beds wards*2: 8 set, total 12 unit container
4. Container E-disinfectant channel and changing room: 1 set, total 1 unit container
5. treatment room: 2 sets, total 4 unit container
6. Doctor office: 1 set, total 2 unit container
7. Nurses station: 1 set, total 2 unit container
8. Toilet room: 2 sets, total 2 unit container
9. Storage room: 1 set, total 2 unit container
10. Dump: 1 set, total 1 unit container
11. Hallway container: 12 set
![HY-A-100-beds](http://www.hysunbuilding.com/wp-content/uploads/2020/06/HY-A-100-bedsjpg-1024x345.jpg)

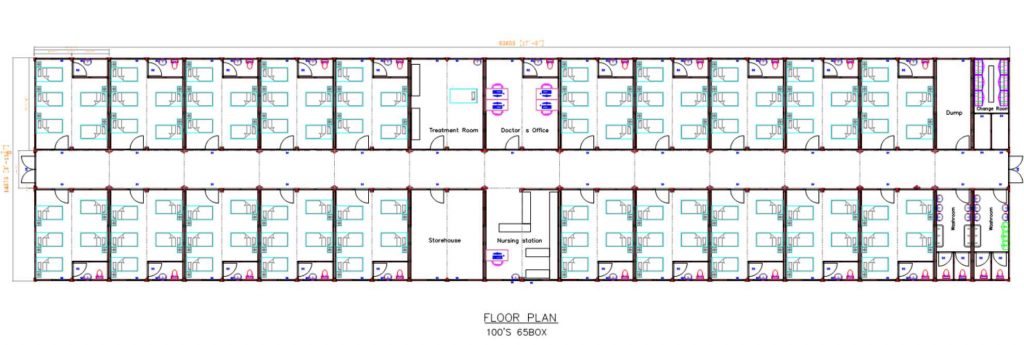

The 100 beds inpatient department Design
Container Unit: 65 units
Included function modular unit:
1. Container C -5 beds wards: 20 sets, total 40 unit container
2. Container E -disinfectant channel and changing room: 1 set, total 1 unit container
3. treatment room: 1 set, total 2 unit container
4. Doctor office: 1 set, total 2 unit container
5. Nurses station: 1 set, total 2 unit container
6. Toilet room: 2 sets, total 2 unit container
7. Storage room: 1 set, total 2 unit container
8. Dump: 1 set, total 1 unit container
9. Hallway container: 13 set
Product Information
Size information is about one unit
External size | L 6055 mm*W 2435 mm*H 2700 mm |
Internal size | L 5855 mm*W 2235 mm*H 2500 mm |
Wainscots | light insulation panels |
Material | Cold-formed steel profiles in a thickness of 2 to 4 mm |
FLOOR Permitted loading | 2.50 KN/m² |
FLOOR Coefficient of thermal conductivity | k= 0.41 W/m²K |
CEILING Permitted loading | 1.00 KN/m² |
CEILING Coefficient of thermal conductivity | k= 0.41 W/m²K |
Voltage | 220/380 V, 50 Hz |
Features
You are free to :
Choose the function units
Decide the Q’ty of function units
Fast to get an in-patient department
Tell me your demand, we will design for you.
we are also good at:
Modular: All materials have been ready in the factory. 90% work-ready.
Speed: 3-4 hours for installation by 4 workers.
Green: None construction waste caused. Can use several times
Free space: can combine to big space in vertical and horizontal, also available in load to 3 layers building
Packing&Load
![HY-A-loadHY-A-load](http://www.hysunbuilding.com/wp-content/uploads/2020/06/HY-A-load-1024x444.jpg)
