Product Description
| Product Name | folding shipping container | Max Gross Weight | 11300 KGS |
| Brand | Hysun | Colour | Customized |
| Tare Weight | 1300 KGS | Place of Product | Shanghai, China |
| inner capacity | 15.95 CBM | Modes of packing | SOC(shipper own container) |
| External dimensions | 3055x2438x2591mm | internal dimensions | 2955*2352*2393mm |

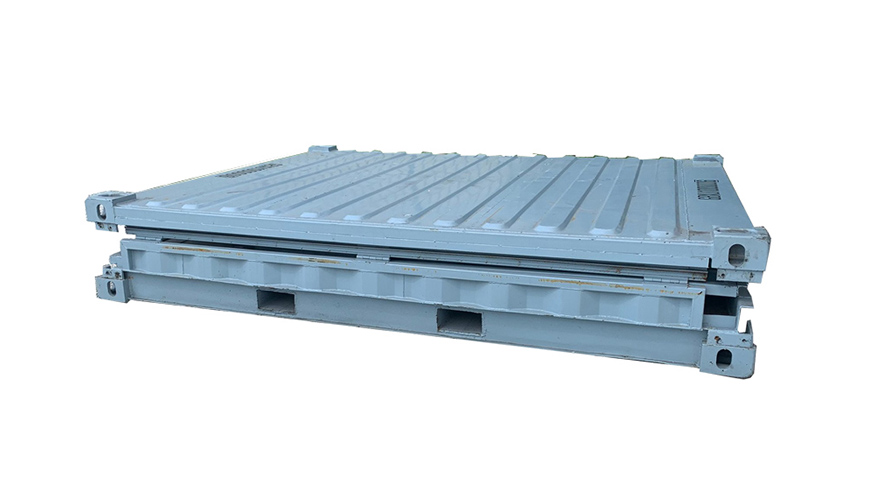

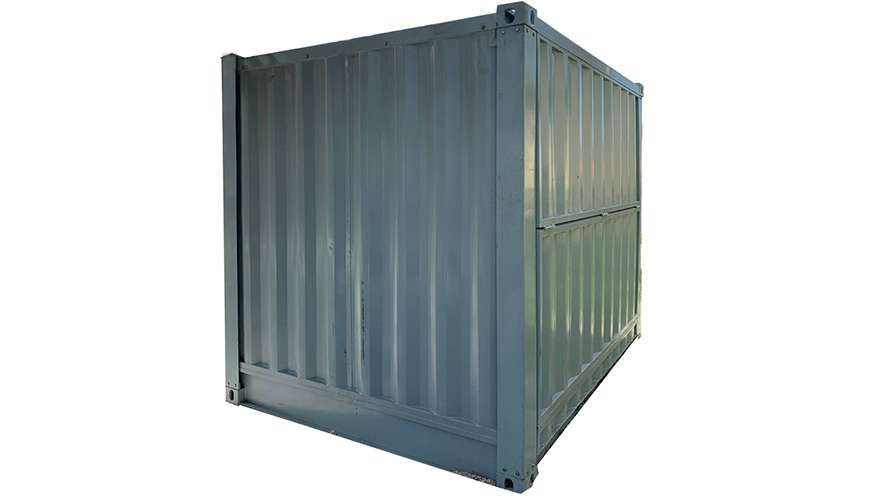

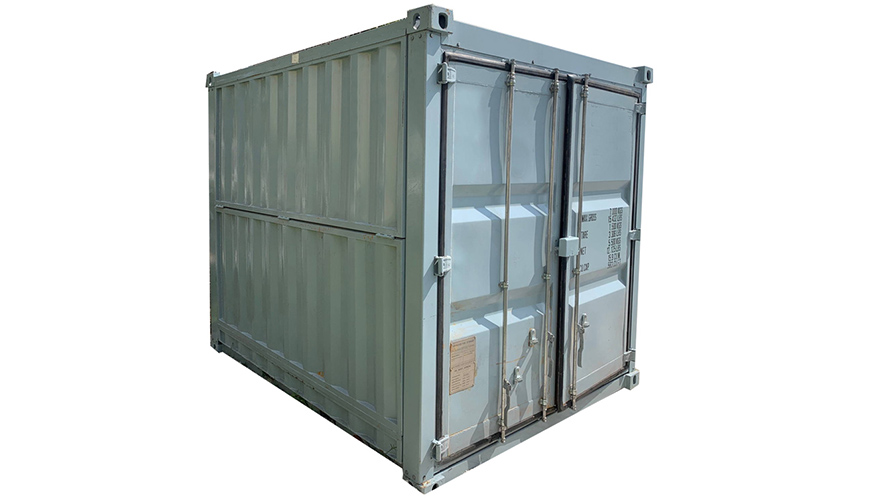

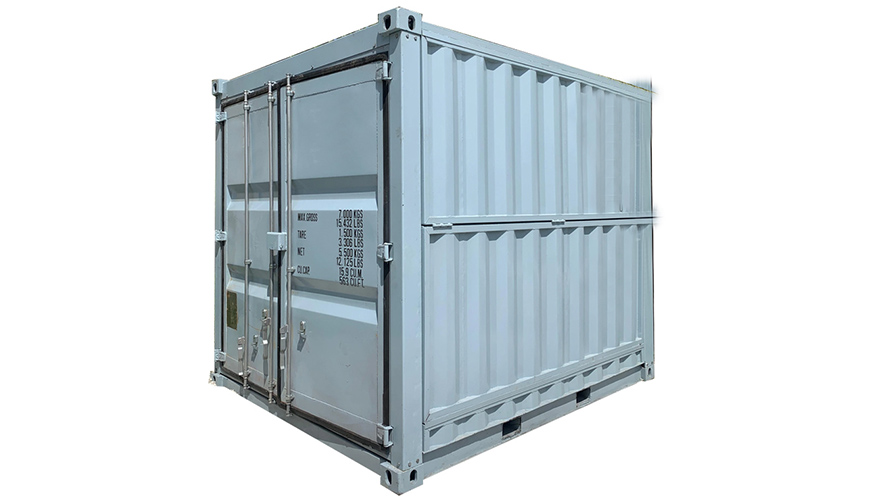

Details Images
Specification
| External Dimensions(L x W x H)mm | 3055x2438x2591 | Internal Dimensions (L x W x H)mm | 3013x2352x2393 |
| Door Dimensions(L x H)mm | 2340×2280 | Inner capacity | 15.95 CBM |
| Tare Weight | 1300 KGS | Max Gross Weight | 11300 KGS |
Maritime Container Material List
| S/N | Name | Desc |
| 1 | Corner | ISO standard corner, 178x162x118mm |
| 2 | Floor Beam for long side | Steel: CORTEN A, thickness: 4.0mm |
| 3 | Floor Beam for short side | Steel: CORTEN A, thickness: 4.5mm |
| 4 | Floor | 28mm, intensity: 7260kg |
| 5 | Column | Steel: CORTEN A, thickness: 6.0mm |
| 6 | Inner column for backside | Steel: SM50YA + channel steel 13x40x12 |
| 7 | Wall panel-long side | Steel: CORTEN A, thickness: 1.6mm+2.0mm |
| 8 | Wall panel-short side | Steel: CORTEN A, thickness: 2.0mm |
| 9 | Door Panel | Steel: CORTEN A, thickness: 2.0mm |
| 10 | Horizontal beam for door | Steel: CORTEN A, thickness: 3.0mm for standard container and 4.0mm for high cube container |
| 11 | Lockset | 4 set container lock bar |
| 12 | Top Beam | Steel: CORTEN A, thickness: 4.0mm |
| 13 | Top panel | Steel: CORTEN A, thickness: 2.0mm |
| 14 | Paint | Inside wall paint thickness: 75µ Outside Wall paint thickness: 30+40+40=110uOutside Roof paint thickness: 30+40+50=120u Chassis paint thickness: 30+200=230u |
More uses
Industrial Equipment Storage is perfectly suited for Shipping Containers. With a marketplace full of easy add-on products that
make it quick and easy to adapt.
One of the most popular applications these days is to build your dream home with re-purposed Shipping Containers. Save time and
money with these highly adaptable units.
With readily available shipping containers for rent and sale in most markets, Shipping Containers are an ideal option for site
storage, and inventory cribs. Safe and secure for remote locations.
With the fast application of Shipping Containers to retail environments, and the added upward mobility of the units, more and more
businesses are opting to use containers to avoid the sunken costs.
Packing&Shipping
Transport and ship with SOC style overworld. (SOC: Shipper own container)
