Product Description
Item Number: HY-A219
Size: L12125* W4885* H2790MM (Hysun Welcome to customize )

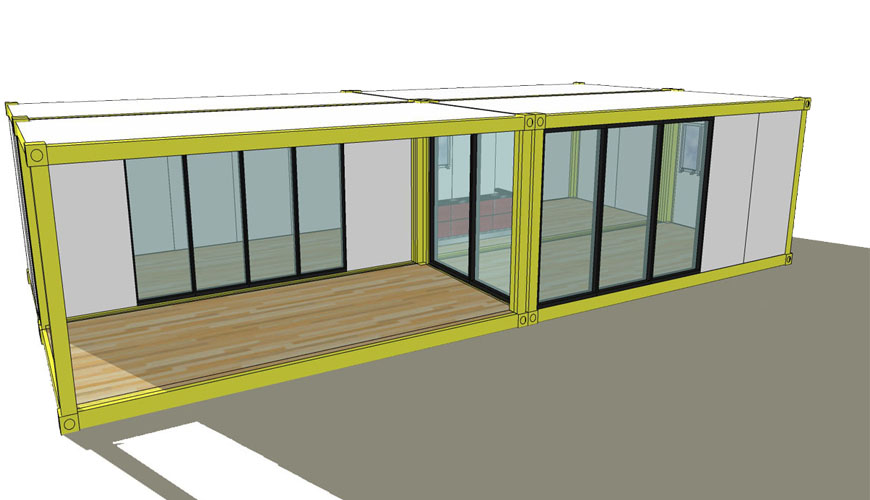

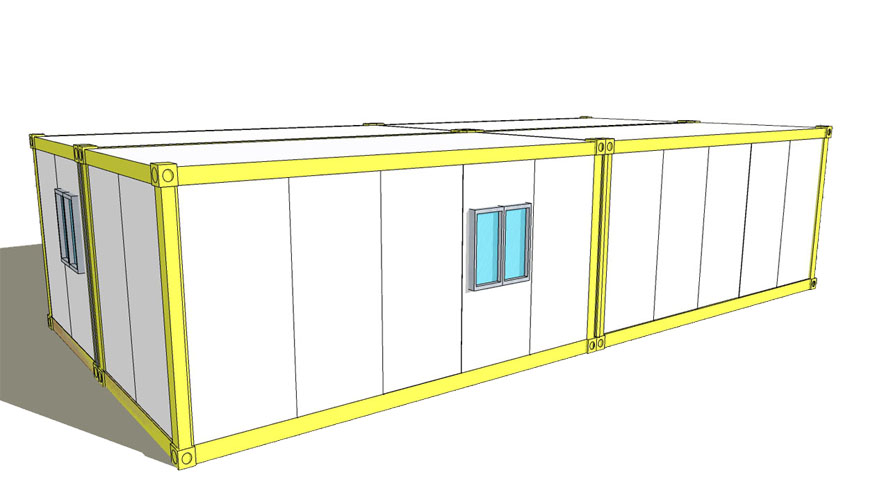

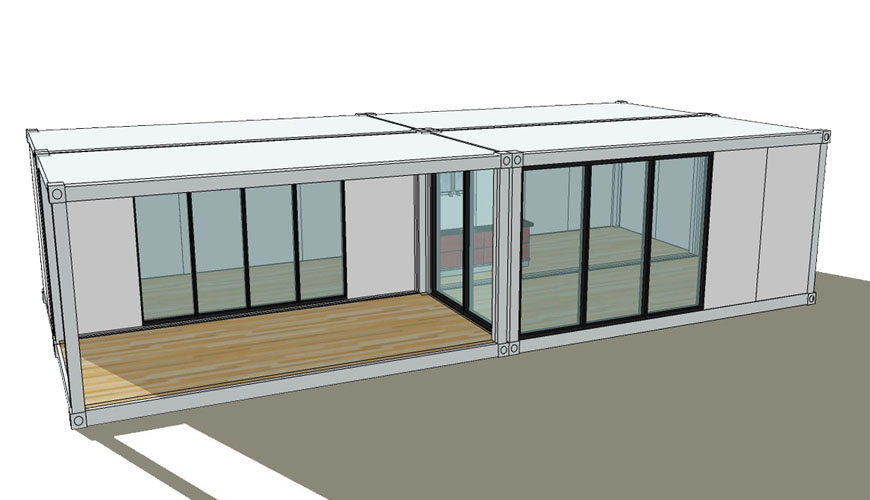

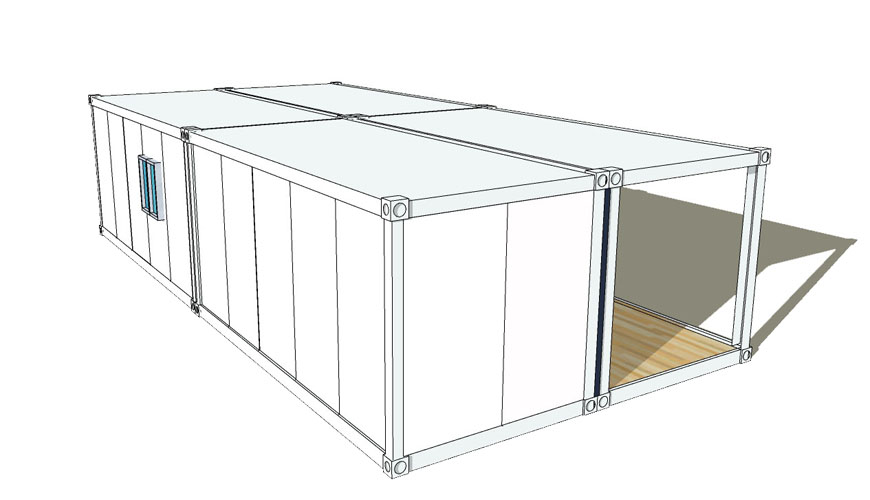

Layout: One open area and one Terrance

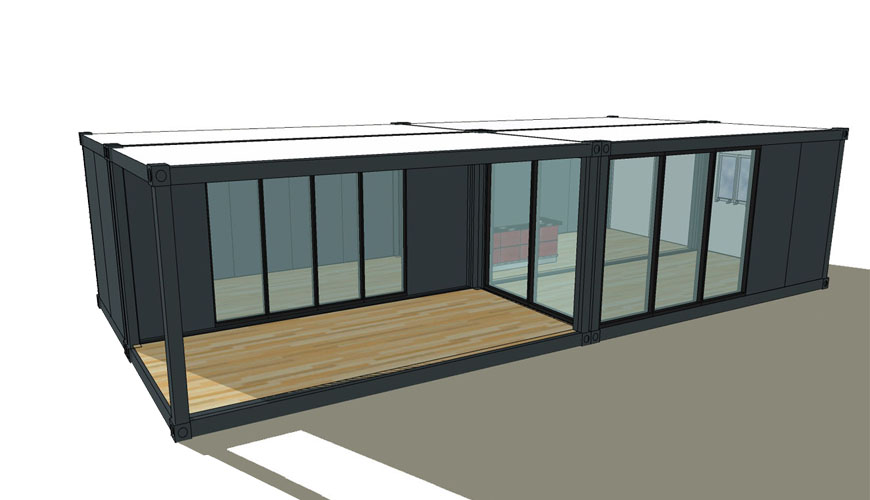

![HY-A219-FRONT 3](http://www.hysunbuilding.com/wp-content/uploads/2020/09/HY-A219-FRONT-3.jpg)
Specification
After-sale Service | Online Technical Support, Onsite Training, Free spare parts |
Project Solution Capability | Graphic Design, 3D model design, total solution for projects |
Application scenarios | Outdoor |
Place of Origin | China |
Brand Name | Hysun |
Model Number | Hy-A219 |
Use | House, Kiosk, Booth, Office, Shop |
Product Type | Sandwich Panel Houses |
Design Style | Modern |
External size | 6055*2435*2790mm |
Internal size | 5855*2235*2500mm |
Roof load | 1.5KN/sqm |
Floor load | 2.5KN/sqm |
Wind load | 180km/h (Chinese standard) |
Seismic fortification intensity | magnitudes 8 |
Suitable temperature scope | -50°C~+50°C |
Earthquake resistance | Grade 7 |
Material List
- Dimension: L6055*W2435*2790MM
- Steel structure: Cold rolled steel structure with corner casts and forklift pockets 90x256x2050mmAvailable size, 8ft x 10ft, 8ft x 16ft, 8ft x 20ft, 8ft x 24ft, 8ft x 30ft, 10ft x 20ft
- Wall panel Exterior Cladding: 0.5mm thick corrugated or flat galvanized coated steel sheet
- Wall panel Insulation: 60mm, 70mm, 80mm, 100mm
- Wall panel Internal Cladding:
A- 9mm thick chipboard with Laminated E1 EmissionValued
B-0.5mm thick galvanized and coated color steel sheet.
Parallel compressive strength = 18.1 MPa;
Formaldehyde emission ≤ 0.1mg/100g;
Water expansion ratio = 0.2%;
Low smoke and non-flammable;
Flammability class A1 – non-combustible;
Smoke density: low smoke emission; - Floor System:
3mm thick cold rolled & welded steel profiles;
Subfloor: 0.5mm thick, galvanized steel sheet;
Floor Board: 18mm magnesium(water resistant v 100);
The board complies with the emission value E 1;
Parallel compressive strength = 35.7 MPa;
Formaldehyde emission ≤ 0.4mg/100g;
1.5mm thick vinyl sheet;
Flammability class B1 – hardly combustible;
Smoke density class Q1 – low smoke emission;
Welded seams. - Fiber cement floor:
Density: 1.26kg/m3 K= 0.18W/m*k;
Waterproof, moisture content = 0.13%/m2
Formaldehyde emission = 0.2 mg/ 100g;
Deformation, parallel to the bending elasticity = 6055MPa - Flooring Cover: 1.5mm thick vinyl sheet; [ Pattern on option ]
- Roof Steel Frame: 4mm thick cold-rolled & welded steel profiles
- Roof Cover:
thick galvanized sheet & double folded in the roof middle; - Ceiling:
A-50mm Steel Sandwich panel(Option 1);
B-9mm chipboard(V20), White(Usual), insulation rock wool(Option2); [ alternative ] - Roof panel:
A-4mm thick cold rolled & welded steel profiles, Screwed to the floor base frame and roof frame.
B-3mm thick cold rolled & welded steel profiles, Screwed to the floor and roof frame. [ alternative ] - Entrance door :
Right or left hand hinged;
Inward or outward opening;
Steel frame with triangular wrap-around sealing;
Door blade with galvanized steel sheets on both sides;
Insulated with honeycomb;
Aluminum or Steel type;
Regular size: 870*2040mm, 870*1995mm. [ 1 pc ] - window: PVC frame with insulated glazing and
Color: white;
Tilt & turn mechanism or sliding;
Regular size: 800*1100mm. - shutter: integrated Aluminum roller shutters; [ ON OPTION ]
- Electrical system:
Included: Waterproof Industrial Plug: 2 pcs, Use the power directly
Distribute Box: 1 set
Outlet: 2 pcs
Light: tube light or ceiling light, 2 pcs
Switches: 1 set with 2K - Electrical Certification: CE,AS/NZ,UL. [ According to client’s demand ]
![](http://www.hysunbuilding.com/wp-content/uploads/2020/09/List-1024x527.jpg)
Features
![feature](http://www.hysunbuilding.com/wp-content/uploads/2020/09/feature-1024x117.jpg)
Modular: All materials have been ready in the factory. 90% work-ready.
Fast: 3-4 hours for installation by 4 workers.
Green: None construction waste caused. Can use several times
Free space: can combine to big space in vertical and horizontal, also available in load to 3 layers building
Packing & Delivery
![](http://www.hysunbuilding.com/wp-content/uploads/2020/09/packing-1024x443.jpg)
4 units/20GP, 8 units/40HQ
Load: 4 kits shipped as 1*20GP
Be noted: Hysun have shipping certification from the classification society
